State
of the art design delivers special standard features:
|
|
Polyurethane Drive Train
- Eliminates the need to load
coil prior to transportation (less material waste)
- Roll form 24-gauge steel.
- Eliminates slippage from
cold weather and condensation.
|
.002 Chrome Plated Steel Forming Rollers
- Roll forms all standard
metals with minimal or no adjustment.
- Free-floating forming
rollers produce less pressure and allow for more product uniformity.
|
|
Electrical and Control System
- Push button control safety
wiring.
- Entrance and exit control
selector switch jog run.
- 3/4 HP, 110 Volt, Single
Phase Motor, 13.6 Ampere
|
Structural Steel Frame
Modular Turn style Upright System
|
|
Specifications:
|
|
Power:
|
3/4 HP,
110 V. Single Phase 13.6 amperes totally enclosed fan cooled (T.E.F.C) motor.
|
|
Dimensions:
|
Length - 122"
Height - 48"
Width - 24"
|
|
Weight:
|
Approximately
1400 lbs.
|
|
Drive:
|
Powered
polyurethane drive rollers via chains and sprockets.
|
|
Shear:
|
5" front pull guillotine/6" front pull guillotine
|
|
Speed:
|
Approximately 35 feet per minute.
|
|
Controls:
|
Push button entry and exit end manual controls with
"jog" feature
|
|
Recommended Materials:
|
5" - 11 3/4" to 12" wide
6" - 15" wide
|
Material
|
Maximum Gauge
|
|
Painted steel
|
24
|
|
Galvanized steel
|
24
|
|
Aluminized steel
|
24
|
|
Ternecoat steel
|
24
|
|
Aluminum
|
.032
|
|
Copper
|
16 oz. 3/4 hard
|
|
|
New easy-adjust entrance guides
|
5" and 6" Front pull guillotines
|
|
Options:
|
Quick release profile change
|
- Additional run out support
stands
- Ground-Fault Protection
(G.F.C.I.)
- 220 volt/50 Hz.
- Additional turn styles
- Additional spools
- Alcoa style hook
|
|
Pricing:
|
|

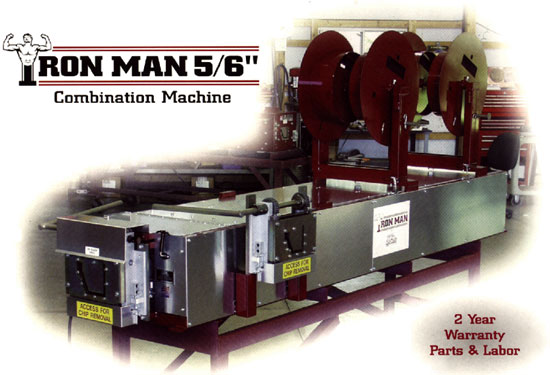

IRON MAN 5"/6" - Includes turn style
upright, two spools, front pull guillotines, push button controls, and two
run out-stands.
|
$13,335.00
|
|
|
Base Machine
|
$11,280.00
|
|
|
6" Front Pull Guillotine
|
$504.00
|
|
|
5" Front Pull Guillotine
|
$504.00
|
|
|
Adjustable Width Single Spool
|
$188.00
|
|
|
5" or 6" Cradle (max 3)
|
$438.00
|
|
|
Run-out Stands
|
$90.00
|
|
|
Coil Transfer Bar Set
|
$150.00
|
|
|
Single Turn style Upright
|
$250.00
|
|
|
Single Fixed Upright
|
$250.00
|
|
